Let’s Talk Halogen Heating Elements
If you’ve ever dealt with convection heating, you know it can be painfully slow. That’s why we build these halogen quartz lamps. They’re all about high-intensity infrared radiation. Basically, they get hot, and they get hot fast.
Getting the Power Right
Here’s the thing about performance: it all comes down to how much wattage you can cram into the length of the tube. If you go for a high-wattage tube in a small space, you’re cranking up the heat density. Depending on your setup, you might be running 230V or 400V to get that extra punch without overloading everything. But a quick heads-up—watch out for that first “cold start.” The initial current surge can be a beast, and if your wiring isn’t up to the task, you’ll be replacing fuses before you even get started.
The Nitty-Gritty: Glass and Plugs

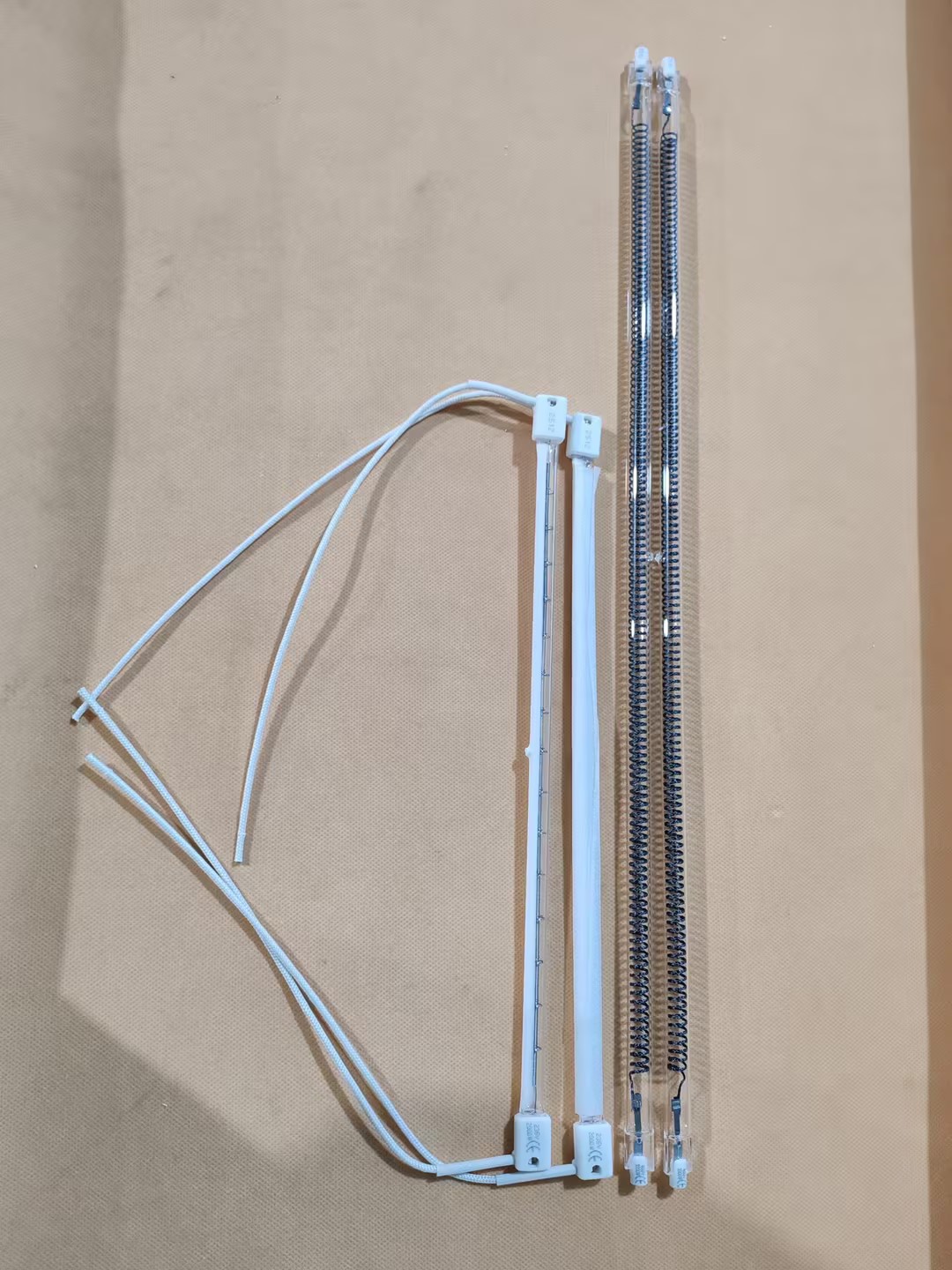

We wrap the tungsten filament in high-purity quartz glass. Why? Because it handles thermal shock like a champ and lets that shortwave IR radiation fly right through. Some of our tubes even have special coatings. It’s a neat trick that helps the heat sink deeper into whatever material you’re working on. As for the connections, we mostly stick with R7s or Sk15. They’re designed to just slide right into standard sockets. **One big warning here:**make sure the fit is tight. A loose connection is a recipe for disaster. You’ll get arcing, which burns out the socket and kills your lamp way sooner than it should.
The Trade-offs (And a Pro Tip)
The best part? The heat is almost instant. It’s a lifesaver for things like PET blowing or rapid curing where you can’t afford to wait around. But there’s a catch. These things are incredibly sensitive to grime. If you touch the quartz glass with your bare hands, the oils from your skin leave a mark. You might not see it, but those oils create “hot spots” when the lamp fires up. Eventually, the thermal stress just snaps the glass. **Do yourself a favor:**grab some isopropyl alcohol and give those tubes a good clean before you wire them up. Your lamps will last a whole lot longer.
